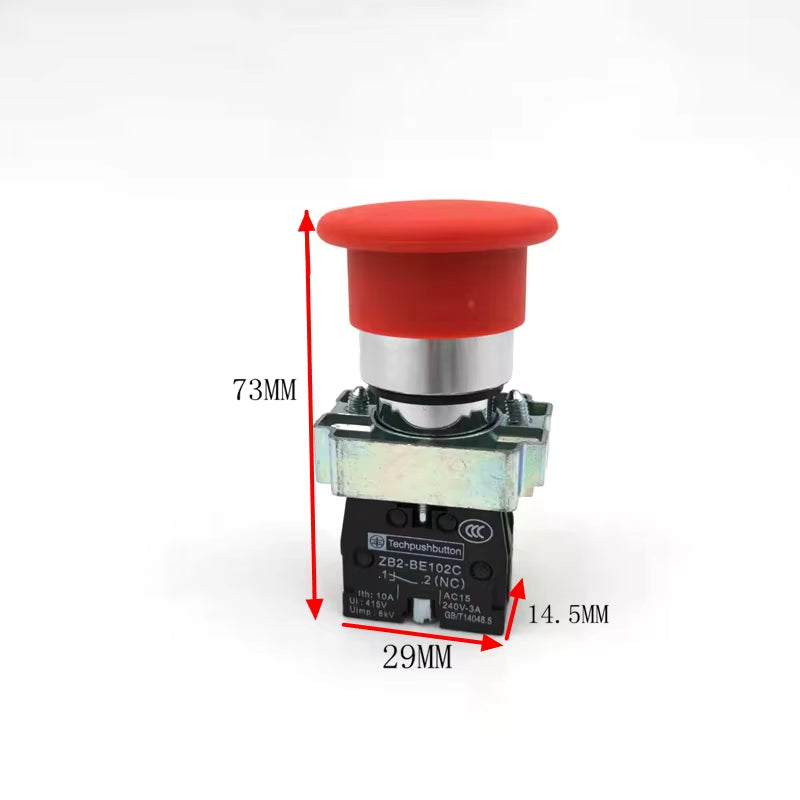

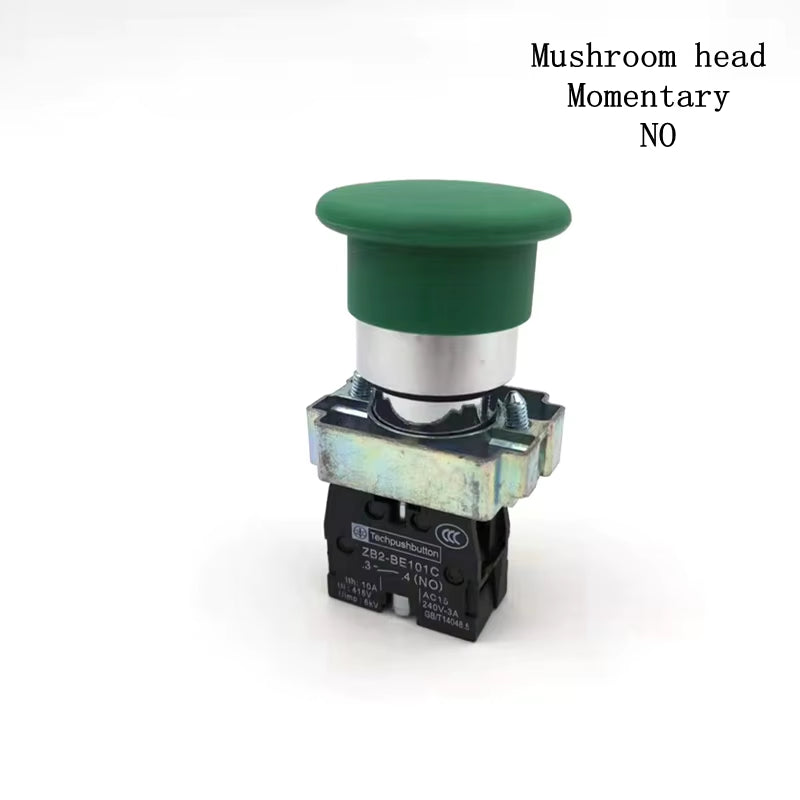

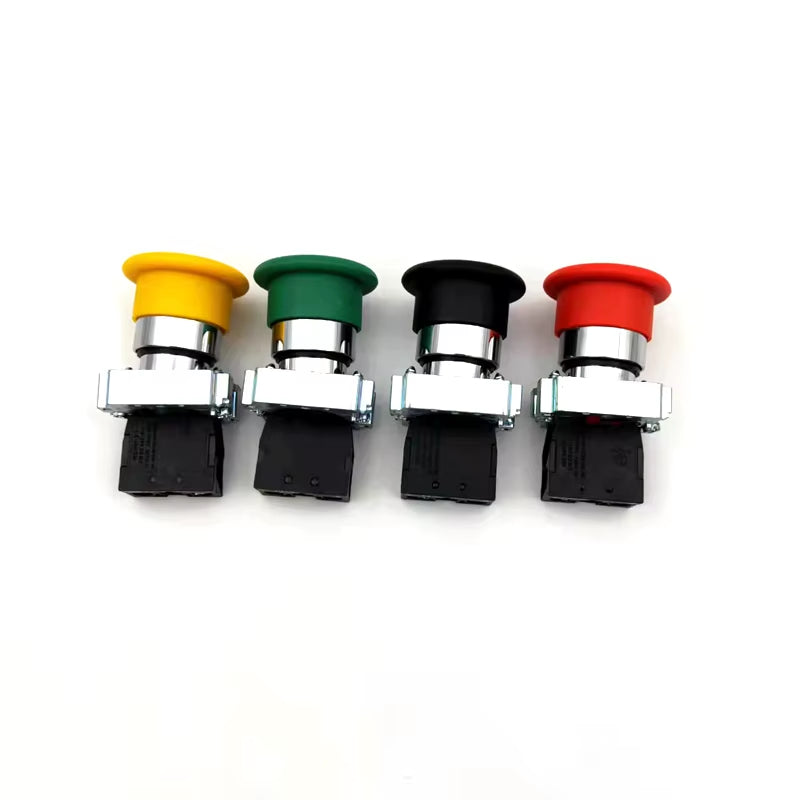

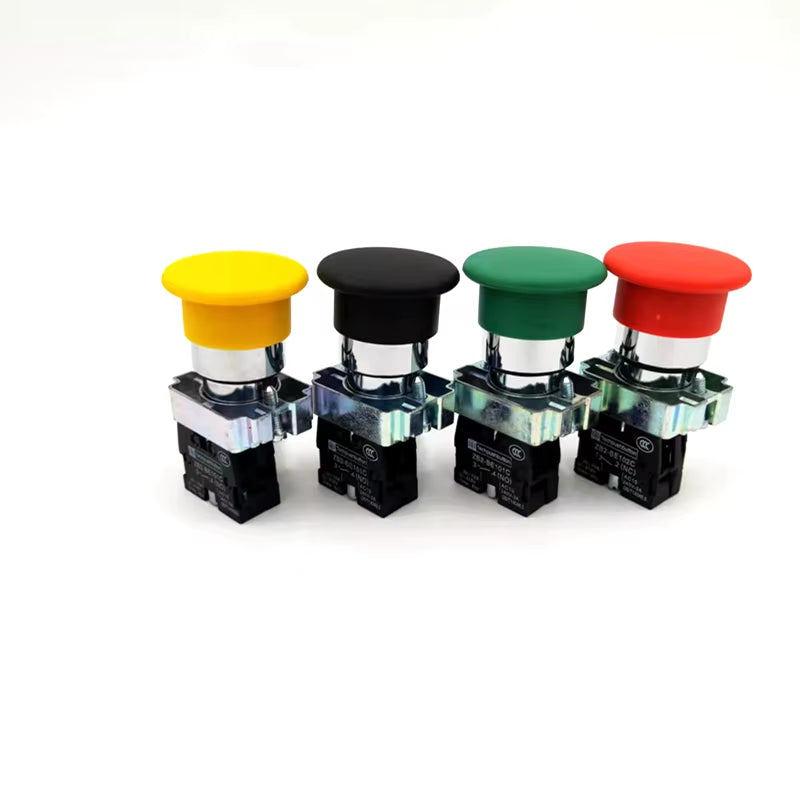

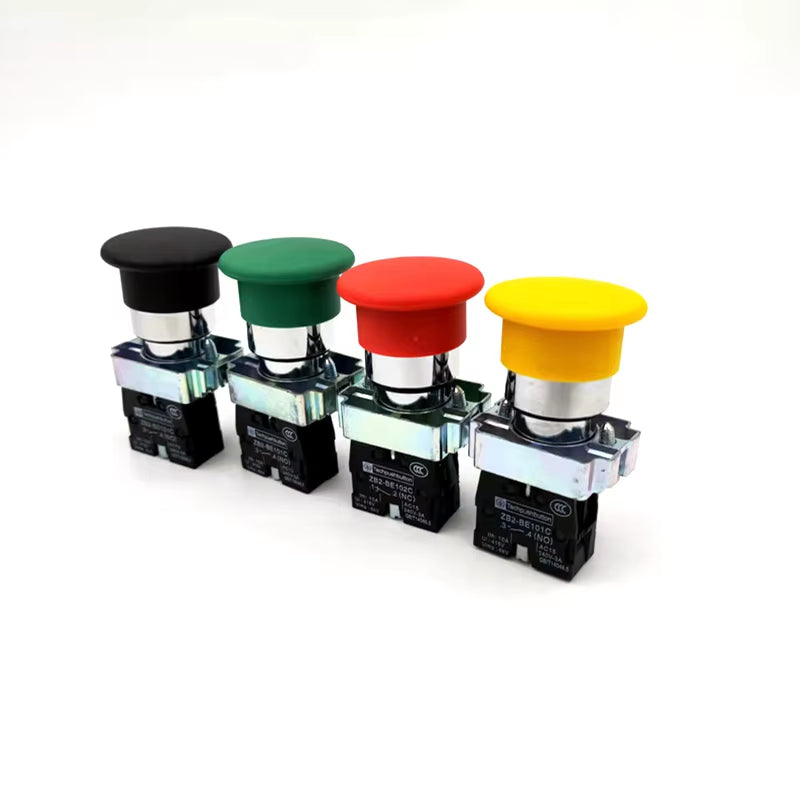

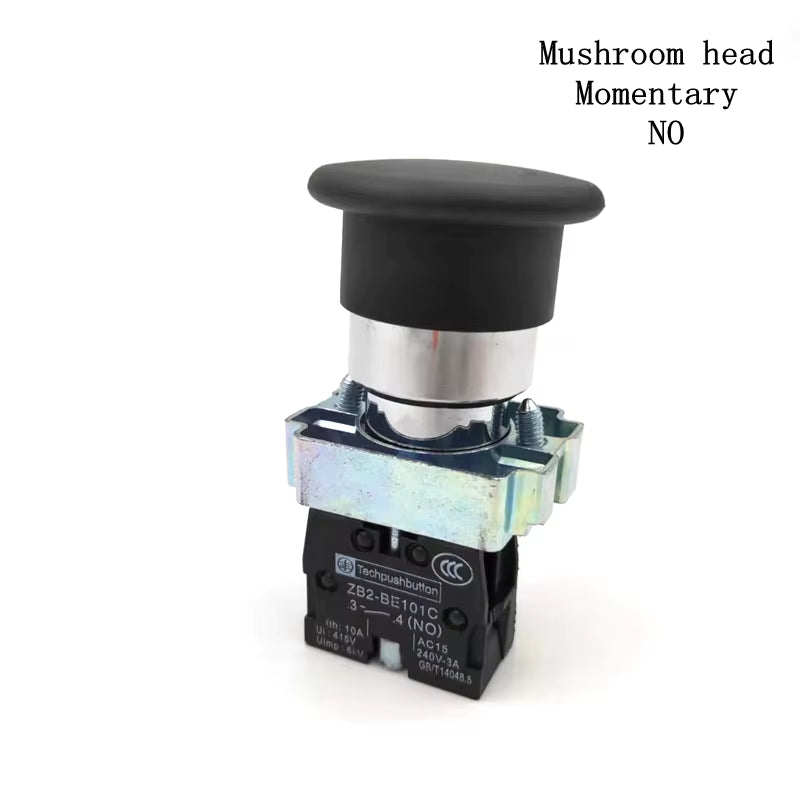

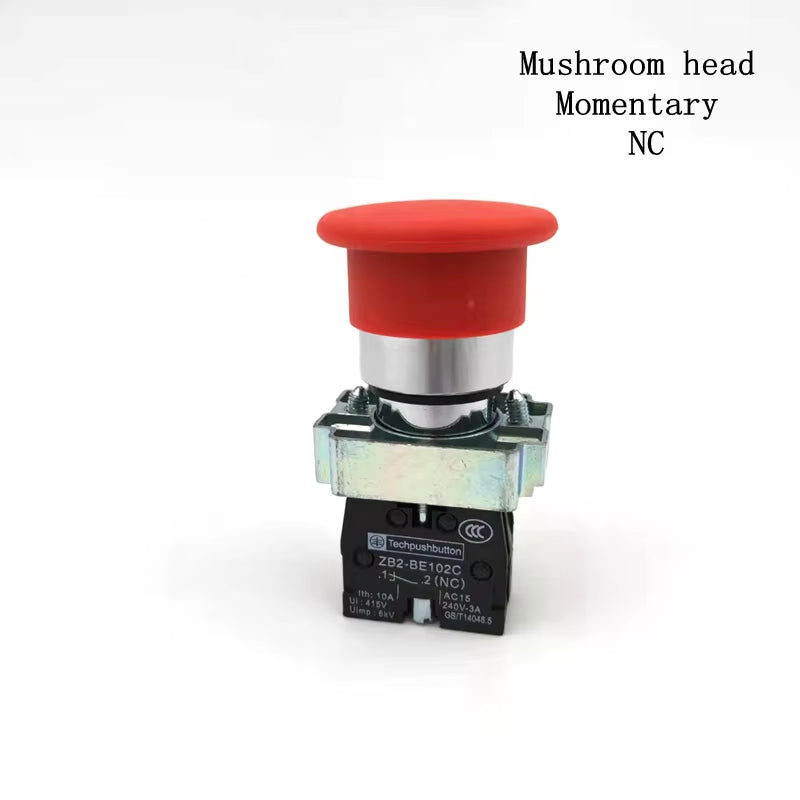

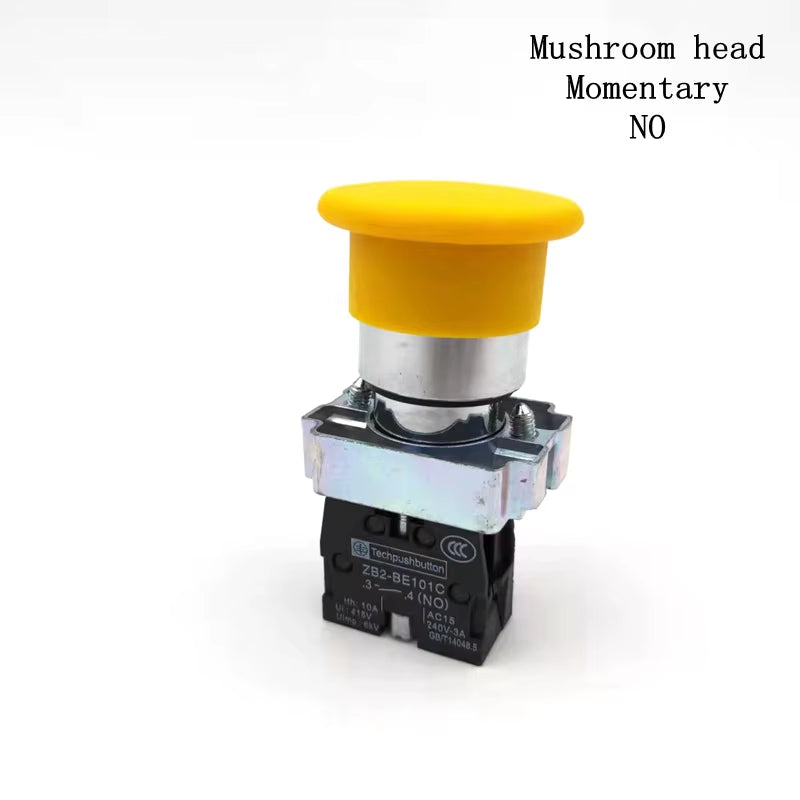

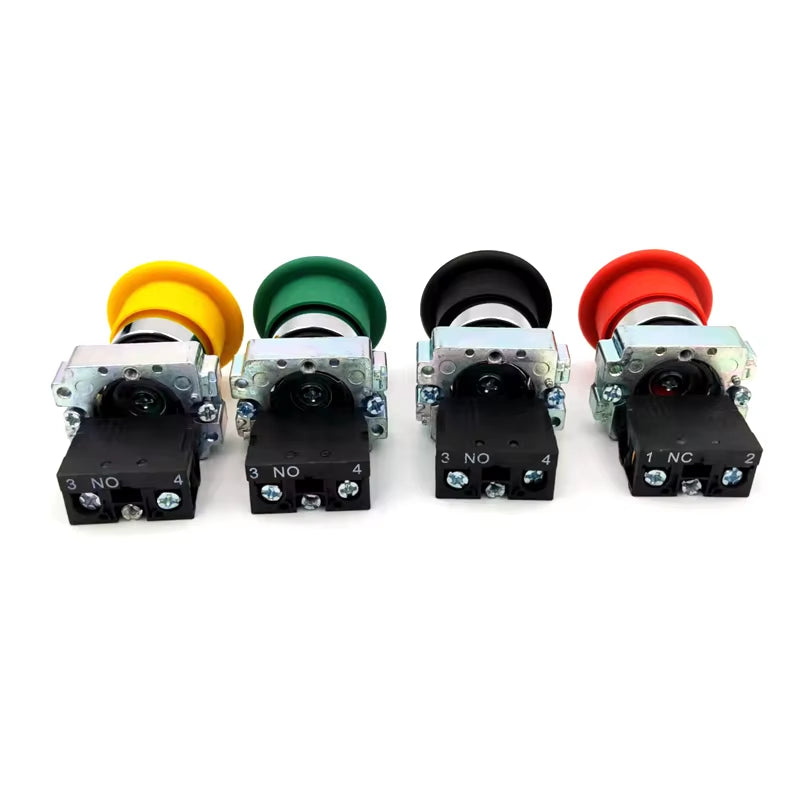

22Mm XB2-BC21 BC31 BC51 NO XB2-BC42 NC Mushroom Head Push Button Switch Momentary Self-Reset 10A/660V
22Mm XB2-BC21 BC31 BC51 NO XB2-BC42 NC Mushroom Head Push Button Switch Momentary Self-Reset 10A/660V
Regular price
$0.32
Regular price
$0.00
Sale price
$0.32
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
XB2 pushbutton switch
1 Basic spec code: 22mm
2 Protection grade: IP40, IP65
3.Electrical durability: 50 x 104
4.CE,CCC certification
Ambient Temperature: |
-5+40 |
Relative Humidity: |
45%85% |
|||||
Contact Resistance: |
?50m? |
Electrical Life |
5.0x105 |
|||||
Withstanding Voltage |
2500V, 1min |
Protection Degree |
IP40 |
|||||
Rated Insulation Voltage, Ui |
660V |
|||||||
Conventional Thermal Current, Ith |
10A |
|||||||
Rated Operational Voltage, Ue |
380V |
220V |
110V |
48V |
24V |
|||
Rated Operational Current, Ie |
AC-15 |
2.5A |
4.5A |
6A |
8A |
- |
||
DC-13 |
- |
0.3A |
0.6A |
1.3A |
2.5A |
|||
Rated Voltage |
Voltage Input Directly |
Resistance |
Transformer |
|||||||
Lamp-House |
6V |
12V |
24V |
48V |
110V |
220V |
380V |
220V |
220V |
380V |
LED Lamp |
? |
? |
? |
- |
- |
- |
- |
- |
? |
? |
Neon Lamp |
- |
- |
- |
- |
? |
? |
? |
? |
- |
- |
Incandecent Lamp |
? |
? |
? |
? |
? |
? |
? |
- |
? |
? |
